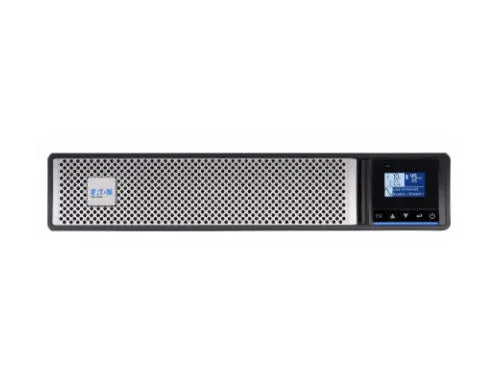

The Eaton 5PX UPS provides line-interactive, backup power and scalable runtimes for servers, storage systems, VoIP gear and network equipment. Designed with multiple managed outlet segments, you can monitor energy consumption and view it on the new LCD screen. It was also designed to provide more available power, has an efficiency rating of up to 99% and offers additional runtime with extended battery modules.

• Primary Information

  Product Description:	Eaton 5PX G2 - UPS - 1950 Watt - 1950 VA
  Device Type:	UPS - rack-mountable / external
  Rack Size:	2U
  Weight:	65.26 lbs
  Input Voltage:	AC 120 V
  Output Voltage:	AC 120 V
  Power Capacity:	1950 Watt / 1950 VA
  Input Connectors:	1 x power NEMA 5-20P
  Output connectors:	1 x power NEMA L5-20R ¦ 6 x power NEMA 5-20R
  Battery:	Lead acid - 7 Ah
  Batteries Qty:	6
  Run Time (Up To):	4 min at full load
  Networking:	RS-232, USB
  Included Accessories:	Tower stand
  Dimensions (WxDxH):	17.4 in x 23.7 in x 3.4 in
  Environmental Standards:	ENERGY STAR
  Manufacturer Warranty:	3-year warranty

• General

  Device Type:	UPS - rack-mountable / external
  Height (Rack Units):	2U

• Power Device

  UPS Technology:	Line interactive
  Input Voltage:	AC 120 V
  Frequency Provided:	50/60 Hz
  Frequency Required:	50/60 Hz
  Input Connectors:	1 x power NEMA 5-20P
  Power Output Connectors Details:	1 x power NEMA L5-20R ¦ 6 x power NEMA 5-20R
  Output Voltage:	AC 120 V 50/60 Hz
  Power Capacity:	1950 Watt / 1950 VA
  Output Waveform:	Sinewave

• Battery

  Quantity:	6
  Technology:	Lead acid
  Capacity:	7 Ah
  Run Time (Up To):	4 min at full load ¦ 12 min at half load
  Features:	Maintenance free, sealed, valve-regulated

• Networking

  Remote Management Interface:

  RS-232, USB

• Expansion / Connectivity

  Interfaces:	1 x management (RS-232) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type B
  Expansion Slots:	1 (total) / 1 (free) x expansion slot

• Miscellaneous

  Included Accessories:	Tower stand
  Cables Included:	USB cable - external ¦ RS-232 cable - external ¦ Power cable 10 ft
  Rack Mounting Kit:	Included
  Features:	Advance Battery Management (ABM), LCD display, hot-swappable batteries

• Sustainability Information

  ENERGY STAR:

  Yes

• Manufacturer Warranty

  Service & Support:

  Limited warranty - 3 years

• Environmental Parameters

  Min Operating Temperature:	32 °F
  Max Operating Temperature:	104 °F
  Humidity Range Operating:	20 - 90% (non-condensing)

• Dimensions & Weight

  Width:	17.4 in
  Depth:	23.7 in
  Height:	3.4 in
  Weight:	65.26 lbs

• Special Feature

  COO:	PHILIPPINES
  TAA compliance:	No

• UNSPSC Code:

  39121000
